The Equipment Used on the Record Run

Great Northern Class P-2 "Mountain" 4-8-2

P-2 "Mountain" 2523

Cyl Diameter: 29" x 28"
Driver Diameter: 73"
Boiler Press.: 210 (200)
Fuel:
   West Coast Engines: Oil
   Midwest Engines: Coal (Pictured)
Engine Wt: 365,000 lbs
Total Engine & Tender Weight: 600,000 lbs.
Weight on Drivers: 150,000 lbs.
Tractive Effort: 54,840 lbs.

2512 Baldwin Locomotive Works, Const No.: 57189, Built: 10/1923  Disposition: Sold for scrap. PC&C 10/7/1955
         Role: Train One, Interbay to Wenatchee

2506 Baldwin Locomotive Works, Const No.: 57183, Built: 10/1923  Disposition: Sold for scrap. PC&C 10/7/1955
         Role: Train One, Wenatchee to Hillyard (Spokane)
2505 Baldwin Locomotive Works, Const No.: 57182, Built: 10/1923  Retired 12/1957
         Role: Train One and Train Two, Whitefish to Cut Bank

2521 Baldwin Locomotive Works, Const No.: 57341, Built: 10/1923  Retired 12/1957
         Role: Train One, Williston to Minot

2509 Baldwin Locomotive Works, Const No.: 57186, Built: 10/1923  Disposition: Sold for scrap. PC&C 10/7/1955
         Role: Train Two, Wenatchee to Hillyard (Spokane)
2519 Baldwin Locomotive Works, Const No.: 57253, Built: 10/1923  Disposition: Sold for scrap. PC&C 4/19/1956
         Role: Train Two, Williston to Minot

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-8-2&railroad=gn (Locobase 206)

Great Northern Class E-14 "10 Wheeler"

E-14 Ten Wheeler

1013 Baldwin Locomotive Works, Const. No.: 33845, Built: 10/1909; Rebuilt H-5, 1368 at Dale Street Shops 6/17/1927
         Role: Train Two, Interbay to Wenachee.

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-6-0&railroad=gn (Locobase 6682)

Great Northern Class B-B Electric

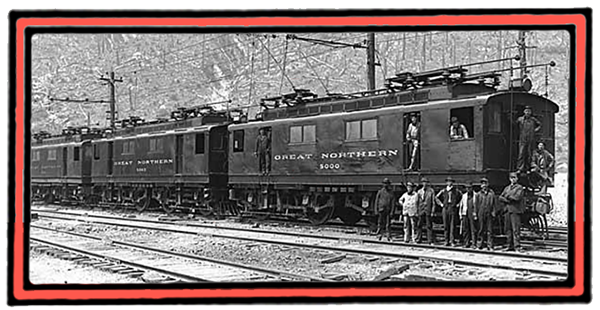

B+B Electrics 5000-5003

Museum of History & Industry Photograph Collection, Image Number: 1983.10.8963

Horse Power: 1000
Engine Wt: 227,000 lbs
Built for and used only at the original Cascade tunnel. For the Silk Trains they were run as a 4 unit MU, or consist.

5000 ALCO-GE, Const No.:45289/2895, Built: 3/1909  Retired 5/1927
5001 ALCO-GE, Const No.:45286/2892,, Built: 2/1909 Retired 5/1927
5002 ALCO-GE, Const No.:45287/2893,, Built: 2/1909 Retired 5/1927
5003 ALCO-GE, Const No.:45288/2894,, Built: 3/1909 Retired 5/1927
         Role: All four units were used to pull both train one and train two through the Cascade Tunnel from Tye Staion to Cascade Tunnel Station

Great Northern Class H-4 "Pacific" 4-6-2

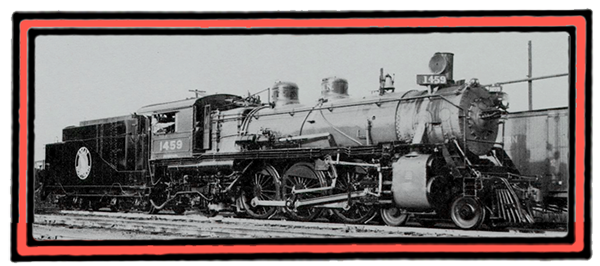

H-4 "Pacific" 1459

H-4 "Pacific" manufactured by Baldwin Locomotive Works

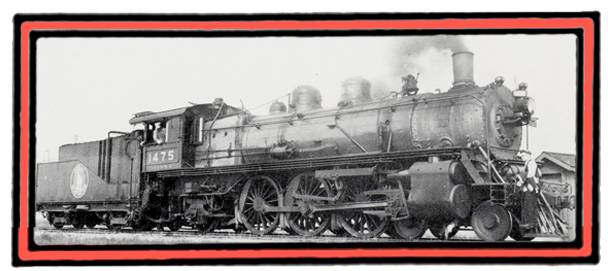

P-4 "Pacific" 1475 Lima

H-4 "Pacific" manufactured by Lima Locomotive Works

Cyl Diameter: 23.5" x 30"
Driver Diameter: 73"
Boiler Press.: 210 (185)
Engine Wt: 251,000 lbs
Total Engine & Tender Weight: 600,000 lbs.
Weight on Drivers: 242,000 lbs.
Tractive Effort: 35,690 lbs.

1442 Baldwin Locomotive Works, Const No.: 33313, Built: 5/1909  Disposition: Scrapped 1951
         Role: Train One, Hillyard (Spokane), Washington to Troy, Montana
1459 Baldwin Locomotive Works, Const No.: 33380, Built: 5/1909  Disposition: Sold for scrap. PC&C 10/1/1952
         Role: Train One and Train Two, Troy to Whitefish, Montana
1449 Baldwin Locomotive Works, Const No.: 33345, Built: 5/1909  Disposition: Sold for scrap. DI&M 7/16/1953
         Role: Train One, Minot, North Dakota to Breckenridge
1473 Lima, Const No.: 1351, Built: 4/1914  Disposition: Sold for scrap. PC&C 10/1/1952
         Role: Train One, Breckenridge to St. Paul Minnesota
1451 Baldwin Locomotive Works, Const No.: 33350 Built: 5/1909  Disposition: Sold for scrap. DI&M  1947
         Role: Train Two, Hillyard (Spokane), WA to Troy, Montana
1452 Baldwin Locomotive Works, Const No.: 33351, Built: 5/1909  Disposition: Sold for scrap. DI&M 4/26/1952
         Role: Train Two, Cut Bank, Montana to Havre
1446 Baldwin Locomotive Works, Const No.: 33352, Built: 5/1909  Disposition: Sold for scrap. DI&M 1951
         Role: Train One and Train Two,  Wolf Point, Montana, Williston, North Dakota

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-6-2&railroad=gn Baldwin (Locobase 146), Lima (Locobase 3173)

Great Northern Class F-5S  2-8-0

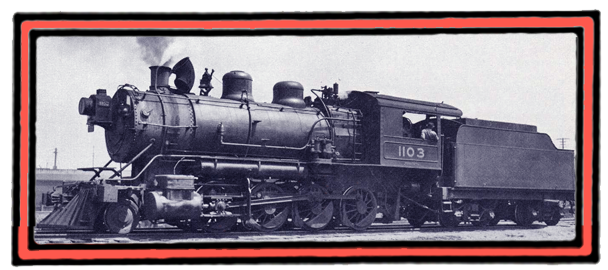

f-5S 1103

Cyl Diameter: 20" x 32"
Driver Diameter: 55"
Boiler Press.: 210
Engine Wt: 194,000 lbs
Weight on Drivers: 179,000 lbs.
Tractive Effort: 41,540 lbs.
This locomotive was equipped with super heaters, thus the "S" in the class number

1101 Rogers Const No.: 5656, Built: 9/1801  Disposition: Scrapped 1938
         Role:Train One, Helper engine from Skykomish, Washington to Tye Station

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=2-8-0&railroad=gn (Locobase 8828)

Great Northern Class E-10 4-6-0

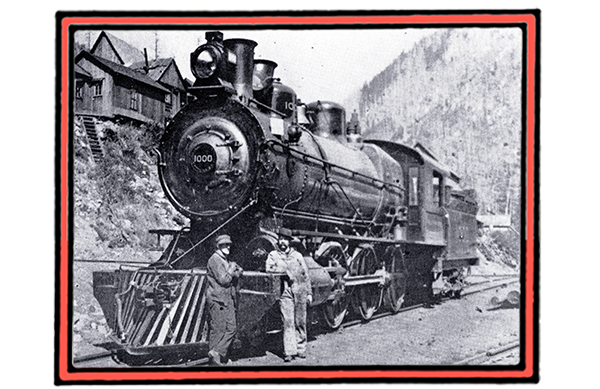

E-10 1000, Wellington, WA at the turn of the century

Image from Lines West, Charles R. Wood, 1967

Cyl Diameter: 20" x 30"
Driver Diameter: 63"
Boiler Press.: 210 (200)
Engine Wt: 2166,580 lbs
Weight on Drivers: 130,000 lbs.
Tractive Effort: 32,380 lbs.

1000 Brooks, Const No.: 2954, Built: 5/1898  Disposition: Scrapped 4/1929
         Role: Trains One and Two helper, Rexford, Montana to Stryker

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-6-0&railroad=gn (Locobase 2970)

Great Northern Class H-5 "Pacific" 4-6-2

H-5 "Pacific" 1365

Cyl Diameter: 23.5" x 30"
Driver Diameter: 73"
Boiler Press.: 210 (185)
Engine Wt: 251,000 lbs
Weight on Drivers: 242,000 lbs.
Tractive Effort: 35,690 lbs.

1491 Dale St. Shops, Const No.: 1358, Built: 12/30/1922 from E-14 1023 Lima  Disposition: Sold for scrap. PC&C 9/13/1950
         Role: Train One, Cut Bank, Montana to Havre

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-6-2&railroad=gn (Locobase 6450)

Great Northern Class K-1S "Atlantic" 4-4-2

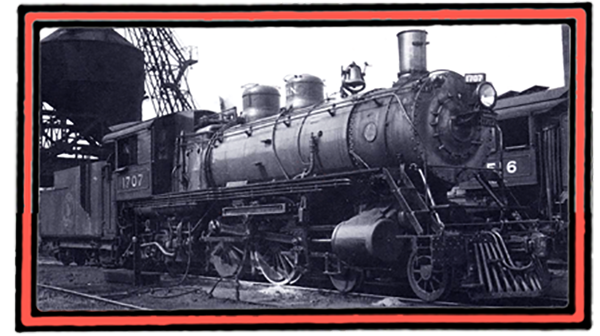

K-1S 1707

Cyl Diameter: 21" x 26"
Driver Diameter: 73"
Boiler Press.: 210 (200)
Engine Wt: 221,300 lbs
Weight on Drivers: 124,900 lbs.
This locomotive was equipped with super heaters, thus the "S" in the class number

1706 Baldwin Locomotive Works, Const No.: 28148, Built: 5/1906  Disposition: Sold for scrap. DI&M 9/9/1941
         Role: Train One, Havre, Montana to Wolf Point
1707 Baldwin Locomotive Works, Const No.: 28162, Built: 5/1906  Disposition: Sold for scrap. PC&C 1940
          Role: Train Two, Havre, Montana to Wolf Point

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-4-2&railroad=gn (Locobase 6944)

Great Northern Class H-6 4-6-2

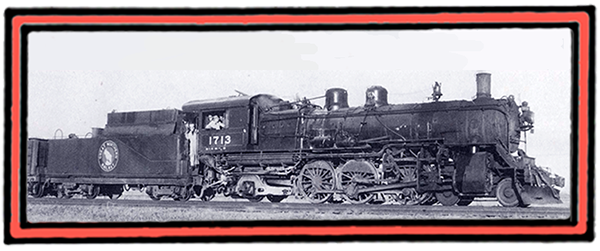

H-6 1713 began life as a J-2, 2-6-2

Cyl Diameter: 23.5" x 30"
Driver Diameter: 69"
Boiler Press.: 210 (200)
Engine Wt: 249,500 lbs
Weight on Drivers: 161,580 lbs.
Tractive Effort: 40,820 lbs.

1713 Dale St. Shops,  Built: 5/4/1921 to 11/719/21  from 2-6-2, J-2, No. 1552,  Baldwin Locomotive Works Const. No. 30094 2/07, Disposition: Sold for scrap. PC&C 4/19/1956
         Role: Train One and Train Two, helper Essex, Montana to Wolf Point

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=4-6-2&railroad=gn Class-E14 1st batch (Locobase 8815)

Great Northern Class O-5 "Mikado" (Mike) 2-8-2 (Rebuilt from L-2 2-6-6-2)

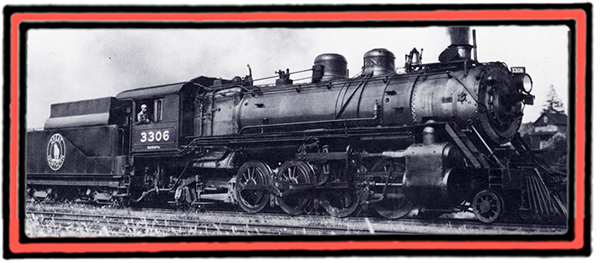

O-5 3306



Cyl Diameter: 25" x 30"
Driver Diameter: 63"
Boiler Press.: 200
Engine Wt: 283,420 lbs
Weight on Drivers: 222,000 lbs.
Tractive Effort:50,600 lbs.

3310 Hillyard Shops 6/3/1923 to 9/8/1923 Rebuilt from L-2 1836 Disposition: Sold for scrap. PC&C 5/5/1947
         Role: Train Two helper Skykomish, Washington to Tye

Note: https://www.steamlocomotive.com/locobase.php?country=USA&wheel=2-8-2&railroad=gn#7448 (Locobase 7450)


Train One, Express Refrigerated Cars

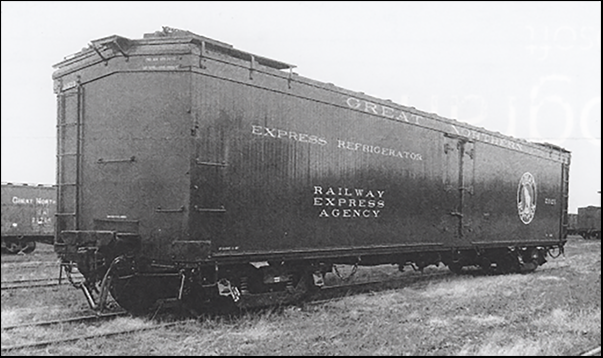

Refrigerated express car No. 2021

While researching I found in the publication "Silk Trains of North America", by Alan Vanderpool, a reference to the August 1924 Silk train run. "In August 1924, silk loaded aboard an Admiral Oriental Line ship in Yokohama was conveyed to New York City (7,397 miles distant) in 13 days, four hours and 25 minutes. The silk was loaded on two Great Northern trains at Seattle WA. The first train was made up of 10 refrigerator cars." In the article "Silk Trains on the Great Northern Railway" by Gordon L. Iseminger,  refers to the the silk train that left Seattle on August 2nd of 1924 identifying the  specific express car that had a failed bearing on the trip as Car No. 2063. This car is identified in the Great Northern Historical Society Reference Sheet No. 165, June 1990 as being a refrigerated express car built by Barney & Smith and delivered to the Great Northern on June 4, 1914.  So I believe it is valid to presume that Car No. 2021 pictured here is representative of the refrigerated cars used in Train One on August 13, 1924.

Car No. 2021 Barney & Smith, Delivered: 5/3/1912, Changed to: X-5029 6/1955, Retired: 7/1962

Unless otherwise noted, all images and specifications are from:

The Great Northern Railway Company: All-Time Locomotive Roster, 1861-1970 Author(s): Norman C. Keyes, Jr. and Kenneth R. Middleton Source: Railroad History, No. 143, GREAT NORTHERN RAILWAY (AUTUMN 1980), pp. 20-162 Published by: Railway & Locomotive Historical Society (R&LHS) Stable URL: https://www.jstor.org/stable/43523930

The source of information concerning crews and equipment assignment:

Great Northern Railway Historical Society, Reference Sheet No, 264, September 1998, Contributor: Robert H. Shober, Assistance: Dr, Gordon L. Iseminger, Portions of text: Martin Evoy III
